GS-911wifi Functionality
EMERGENCY functionality is embedded in the GS-911wifi unit. It lets the user view ECU information, Read & Clear Fault codes on ALL control units, and view Real-time Live sensor data for ALL engine control units. Any device with a Browser and Wifi are supported
In the WIFI (10-Pin) and WIFI (OBD II) VERSIONS, this functionality is accessed through both the PC application and moblie software.
In the USB (OBD-II) VERSION, this functionality is accessed through the PC application only, as the USB Version has no wifi or mobile capabilities.
SERVICE functionality includes the ability to reset Service Reminders, do Output Function Tests, Calibrations, ABS Bleed Tests, Clear & Relearn Adaptations and much more. Available with the Windows PC app.
CLOUD functionality enables a mobile device (or laptop) with an html 5 compliant browser that is connected to the HEX CLOUD server through the internet, to have access to the Service functionality that was previously only available in the Windows PC application.
As with previous generations, the GS-911 functionality is broken down into Emergency and Service functionality.
The Windows PC software can be connected through USB or wifi and has the complete functionality. When on the road, you can connect your mobile device using wifi (the GS-911 has a Soft Access point to which any device can connect for when you are not in reach of your home/office/garage Wifi network).
The Emergency Functionality is allowed on an unlimited number of VINS for both the Enthusiast Version and the Professional Version.
In the WIFI (10-Pin) and WIFI (OBD II) VERSIONS, this functionality is accessed through both the PC application and moblie software.
In the USB (OBD-II) VERSION, this functionality is accessed through the PC application only, as the USB Version has no wifi or mobile capabilities.
The Service Functionality is limited to 10 VINS with the Enthusiast Version. The Professional Version can service an unlimited number of VINS.

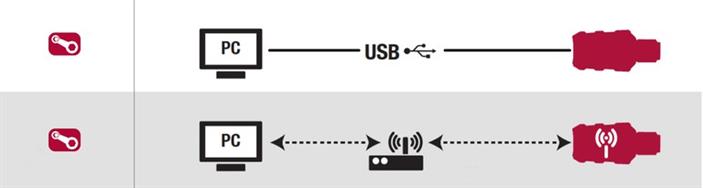

Connecting to your GS-911wifi:
Your GS-911wifi comes with both USB and Wifi. The GS-911 Windows PC software can be used over either the USB or Wifi connection. The Windows PC software has the the full functionality for every model that is supported by GS-911.
If you are on the road, no where near your home/office/garage wifi, you can connect your mobile device (could be any phone, tablet, iPad etc.), to your GS-911wifi device, using the GS-911's built in soft Access Point, or as we refer to it "Device-to-Device" (D2D) mode. Simply scan for a wifi network that starts with GS-911... and connect to it - it's that simple!
Note: When using D2D mode you only have access to the embedded EMERGENCY Functionality - see above definitions.
Using any device with a html 5 browser and wifi (Android phone/tablet, iPhone/iPad, MAC, etc.), that also has internet access, you are able to connect to the HEX CLOUD. This gives you SERVICE functionality that was previously limited to the Windows PC version. Be sure to keep an eye on this evolving functionality!
Where:
Windows PC/Laptop,
Wifi Router/AccessPoint,
Any device with a Browser and Wifi.
What systems does it cover?
This depends on the bike model, but in general the following systems are covered (please refer to the Function Chart):
Engine Control Unit (BMSX, BMS-K, BMS-KP, BMS-C, BMS-CII, BMS-E, MA2.4, KMS-K16)
ABS (XABS, ABS-II, ABS-N, Integral-ABS, Integral-ABS-CAN, Integral-ABS2-CAN, ABS8, ABS8MOC)
Instrument Cluster (XKombi, Kombi-H, Kombi-L, Kombi-7x, Kombi-2D, Kombi-18)
Central Vehicle Electronics (XBCO, ZFE-Basic (low, mid, high), ZFE-Low, ZFE-High (full, no-ESA, ESA-only))
Satellite Vehicle Electronics (XFSA)
Suspension Control (XESA, XSAF)
Immobiliser Unit (XEWS4)
Anti-Theft Alarm System (XDWA, DWA)
Keyless Entry Control (XSLZ)
Tyre Pressure Monitor (XRDC, RDC)
Headlight Control (XASW)
Audio Control (XAUD)
Note: Not all motorcycles have all the systems. Please reference the Function Chart to see exactly what systems are covered on the individual
models.
Software
|
GS-911 Windows PC software
GS-911wifi mobile app (iOS and Android)
On-board GS-911wifi web interface (using any HTML5 web browser)
|
On-Board File Storage
|
4GB, 8GB or 16GB
|
Connection
|
USB or WiFi
|
USB Connector
|
B-Type (cable supplied)
|
Power Supply
|
USB and/or 12V from 10-pin connector/ J1962 (OBD-II) connector
|
WiFi Compatibility
|
802.11b/g 2.4GHz channels 1 to 11
|
WiFi Range
|
Within the same room (less than 10 meter)
|
WiFi Modes
WiFi Security Options
|
Infrastructure and D2D SoftAP (channel 6)
None/WEP/WPA/WPA2
|
